Black Rhino Arsenal Cast Aluminum Wheel - Textured Matte Black (BRARS)
$270.00
$270.00

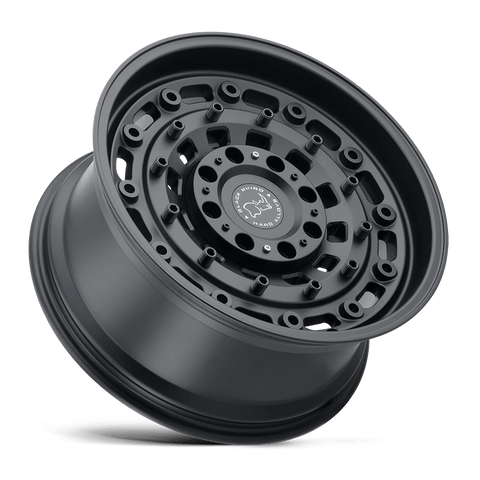

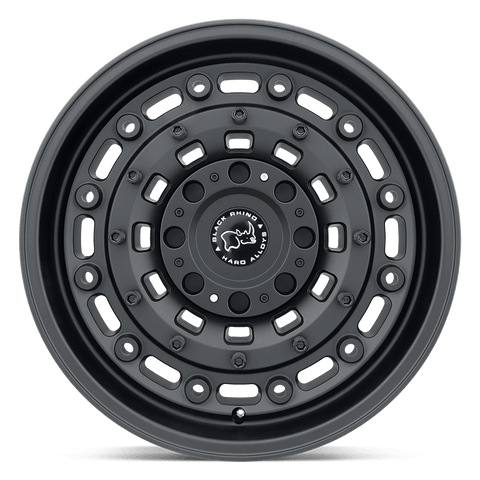

The Black Rhino Arsenal is a cast aluminum wheel from Black Rhino. This wheel has a textured matte black finish with a one year warranty on the finish. There is a lifetime structural warranty on the Arsenal.
- Available Diameters: 16, 17, 18, 20 inches
- Available Widths: 8, 8.5, 9.5, 12 inches
- Available Sizes: 16x8, 17x8, 17x9.5, 18x8, 18x9.5, 20x12, 20x8.5, 20x9.5 inches
- Available Bolt Patterns: 6x120mm (6x4.72"), 6x139.7mm (6x5.50"), 5x160mm (5x6.30"), 6x130mm (6x5.12"), 5x114.3mm (5x4.50"), 5x120mm (5x4.72"), 5x127mm (5x5.00"), 5x139.7mm (5x5.50"), 6x135mm (6x5.31"), 8x165.1mm (8x6.50"), 8x170mm (8x6.69"), 8x180mm (8x7.09"), 5x150mm (5x5.91")
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
About Black Rhino
Specifications
| Wheel Size | Bolt Pattern | SKU | Weight | Max Load Rating | Lug Type | Backspacing | Lip Depth | TPMS Compatible |
|---|---|---|---|---|---|---|---|---|
| 16x8 / 6x120 & 6x139.7 / -10mm / CB78.10 | 6x4.72" & 6x5.50" | 1680ARS-00078M78 | 29.48 lbs. | 2700 lbs. / 1224 kg | conical | 4.11 | 1.30 | yes |
| 16x8 / 6x139.7 / -10mm / CB112.10 | 6x5.50" | 1680ARS-06140M12 | 25.57 lbs. | 2700 lbs. / 1224 kg | conical | 4.11 | 1.30 | yes |
| 16x8 / 5x160 / +38mm / CB65.07 | 5x6.30" | 1680ARS385160M65 | 25.13 lbs. | 3300 lbs. / 1496 kg | conical | 6.00 | 1.30 | yes |
| 16x8 / 6x130 / +38mm / CB84.10 | 6x5.12" | 1680ARS386130M84 | 24.03 lbs. | 3300 lbs. / 1496 kg | conical | 6.00 | 1.30 | yes |
| 17x8 / 5x114.3 & 5x120 / +30mm / CB74.10 | 5x4.50" & 5x4.72" | 1780ARS300017M74 | 32.56 lbs. | 2700 lbs. / 1224 kg | conical | 5.68 | 0.69 | yes |
| 17x8 / 5x114.3 & 5x127 / +30mm / CB72.56 | 5x4.50" & 5x5.00" | 1780ARS300054M72 | 32.56 lbs. | 2700 lbs. / 1224 kg | conical | 5.68 | 0.69 | yes |
| 17x8 / 6x130 / +38mm / CB84.10 | 6x5.12" | 1780ARS386130M84 | 28.44 lbs. | 3300 lbs. / 1496 kg | conical | 6.00 | 0.69 | yes |
| 17x9.5 / 5x127 & 5x139.7 / -18mm / CB78.10 | 5x5.00" & 5x5.50" | 1795ARS-80035M78 | 37.18 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 1.78 | yes |
| 17x9.5 / 6x135 & 6x139.7 / -18mm / CB106.10 | 6x5.31" & 6x5.50" | 1795ARS-80067M06 | 37.18 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 1.78 | yes |
| 17x9.5 / 8x165.1 / -18mm / CB122.40 | 8x6.50" | 1795ARS-88165M22 | 36.38 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.78 | yes |
| 17x9.5 / 8x170 / -18mm / CB125.10 | 8x6.69" | 1795ARS-88170M25 | 36.16 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.78 | yes |
| 17x9.5 / 8x180 / -18mm / CB125.10 | 8x7.09" | 1795ARS-88180M25 | 36.38 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.78 | yes |
| 17x9.5 / 5x139.7 & 5x150 / +0mm / CB110.10 | 5x5.50" & 5x5.91" | 1795ARS000086M10 | 34.98 lbs. | 2500 lbs. / 1133 kg | conical | 5.25 | 1.78 | yes |
| 17x9.5 / 6x135 & 6x139.7 / +12mm / CB106.10 | 6x5.31" & 6x5.50" | 1795ARS120067M06 | 32.56 lbs. | 2500 lbs. / 1133 kg | conical | 5.72 | 1.78 | yes |
| 17x9.5 / 8x165.1 / +12mm / CB122.40 | 8x6.50" | 1795ARS128165M22 | 33.07 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.78 | yes |
| 17x9.5 / 8x170 / +12mm / CB125.10 | 8x6.69" | 1795ARS128170M25 | 32.85 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.78 | yes |
| 17x9.5 / 8x180 / +12mm / CB125.10 | 8x7.09" | 1795ARS128180M25 | 33.07 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.78 | yes |
| 18x8 / 5x114.3 & 5x120 / +30mm / CB74.10 | 5x4.50" & 5x4.72" | 1880ARS300017M74 | 34.54 lbs. | 2700 lbs. / 1224 kg | conical | 5.68 | 0.70 | yes |
| 18x8 / 5x114.3 & 5x127 / +30mm / CB72.56 | 5x4.50" & 5x5.00" | 1880ARS300054M72 | 34.54 lbs. | 2700 lbs. / 1224 kg | conical | 5.68 | 0.70 | yes |
| 18x8 / 6x130 / +38mm / CB84.10 | 6x5.12" | 1880ARS386130M84 | 34.17 lbs. | 3300 lbs. / 1496 kg | conical | 6.00 | 0.70 | yes |
| 18x9.5 / 5x127 & 5x139.7 / -18mm / CB78.10 | 5x5.00" & 5x5.50" | 1895ARS-80035M78 | 40.26 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 1.80 | yes |
| 18x9.5 / 6x135 & 6x139.7 / -18mm / CB106.10 | 6x5.31" & 6x5.50" | 1895ARS-80067M06 | 40.26 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 1.80 | yes |
| 18x9.5 / 8x165.1 / -18mm / CB122.40 | 8x6.50" | 1895ARS-88165M22 | 39.24 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.80 | yes |
| 18x9.5 / 8x170 / -18mm / CB125.10 | 8x6.69" | 1895ARS-88170M25 | 39.24 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.80 | yes |
| 18x9.5 / 8x180 / -18mm / CB125.10 | 8x7.09" | 1895ARS-88180M25 | 39.24 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 1.80 | yes |
| 18x9.5 / 6x135 & 6x139.7 / +12mm / CB106.10 | 6x5.31" & 6x5.50" | 1895ARS120067M06 | 36.52 lbs. | 2500 lbs. / 1133 kg | conical | 5.72 | 1.80 | yes |
| 18x9.5 / 5x139.7 & 5x150 / +12mm / CB110.10 | 5x5.50" & 5x5.91" | 1895ARS120086M10 | 36.52 lbs. | 2500 lbs. / 1133 kg | conical | 5.72 | 1.80 | yes |
| 18x9.5 / 8x165.1 / +12mm / CB122.40 | 8x6.50" | 1895ARS128165M22 | 37.04 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.80 | yes |
| 18x9.5 / 8x170 / +12mm / CB125.10 | 8x6.69" | 1895ARS128170M25 | 37.26 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.80 | yes |
| 18x9.5 / 8x180 / +12mm / CB125.10 | 8x7.09" | 1895ARS128180M25 | 37.26 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 1.80 | yes |
| 20x12 / 5x127 & 5x139.7 / -44mm / CB78.10 | 5x5.00" & 5x5.50" | 2012ARS-40035M78 | 42.24 lbs. | 2500 lbs. / 1133 kg | conical | 4.77 | 5.37 | yes |
| 20x12 / 6x135 & 6x139.7 / -44mm / CB106.10 | 6x5.31" & 6x5.50" | 2012ARS-40067M06 | 42.24 lbs. | 2500 lbs. / 1133 kg | conical | 4.77 | 5.37 | yes |
| 20x12 / 8x165.1 / -44mm / CB122.40 | 8x6.50" | 2012ARS-48165M22 | 41.89 lbs. | 3640 lbs. / 1651 kg | conical | 4.77 | 5.37 | yes |
| 20x12 / 8x170 / -44mm / CB125.10 | 8x6.69" | 2012ARS-48170M25 | 41.67 lbs. | 3640 lbs. / 1651 kg | conical | 4.77 | 5.37 | yes |
| 20x12 / 8x180 / -44mm / CB125.10 | 8x7.09" | 2012ARS-48180M25 | 41.89 lbs. | 3640 lbs. / 1651 kg | conical | 4.77 | 5.37 | yes |
| 20x8.5 / 5x114.3 & 5x120 / +30mm / CB74.10 | 5x4.50" & 5x4.72" | 2085ARS300017M74 | 39.82 lbs. | 2200 lbs. / 997 kg | conical | 5.93 | 1.13 | yes |
| 20x9.5 / 5x127 & 5x139.7 / -18mm / CB78.10 | 5x5.00" & 5x5.50" | 2095ARS-80035M78 | 44.44 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 2.07 | yes |
| 20x9.5 / 6x135 & 6x139.7 / -18mm / CB106.10 | 6x5.31" & 6x5.50" | 2095ARS-80067M06 | 44.44 lbs. | 2500 lbs. / 1133 kg | conical | 4.54 | 2.07 | yes |
| 20x9.5 / 8x165.1 / -18mm / CB122.40 | 8x6.50" | 2095ARS-88165M22 | 43.21 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 2.07 | yes |
| 20x9.5 / 8x170 / -18mm / CB125.10 | 8x6.69" | 2095ARS-88170M25 | 42.99 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 2.07 | yes |
| 20x9.5 / 8x180 / -18mm / CB125.10 | 8x7.09" | 2095ARS-88180M25 | 43.21 lbs. | 3640 lbs. / 1651 kg | conical | 4.54 | 2.07 | yes |
| 20x9.5 / 6x135 & 6x139.7 / +12mm / CB106.10 | 6x5.31" & 6x5.50" | 2095ARS120067M06 | 40.48 lbs. | 2500 lbs. / 1133 kg | conical | 5.72 | 2.07 | yes |
| 20x9.5 / 8x165.1 / +12mm / CB122.40 | 8x6.50" | 2095ARS128165M22 | 41 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 2.07 | yes |
| 20x9.5 / 8x170 / +12mm / CB125.10 | 8x6.69" | 2095ARS128170M25 | 40.76 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 2.07 | yes |
| 20x9.5 / 8x180 / +12mm / CB125.10 | 8x7.09" | 2095ARS128180M25 | 41 lbs. | 3640 lbs. / 1651 kg | conical | 5.72 | 2.07 | yes |
